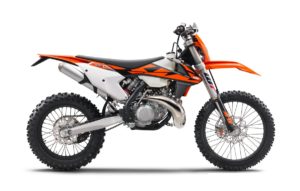

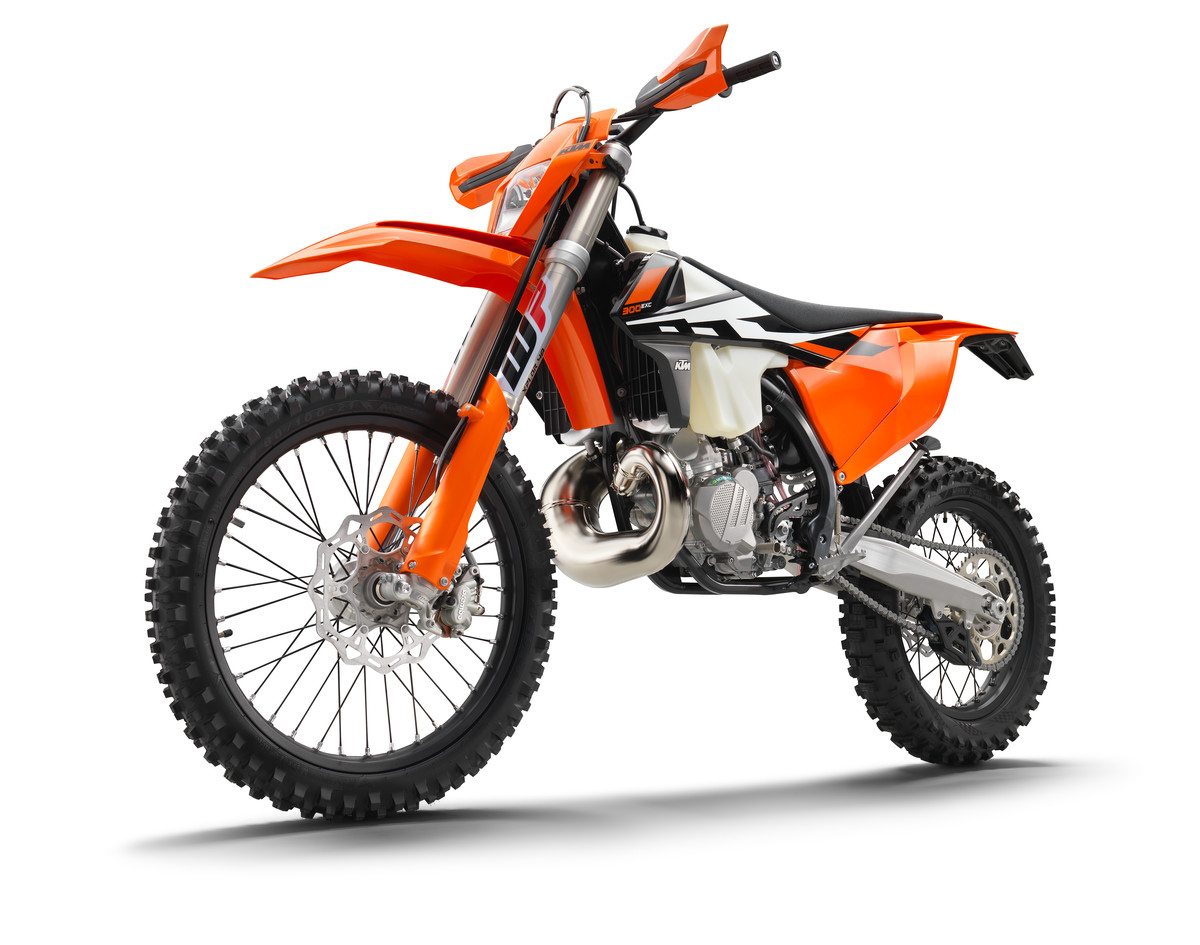

PHOTOS: First LOOK at the KTM Fuel Injected 2-stroke 250/300 EXC TPI

The future is here! KTM presents its first TPI 2-stroke Dirt bikes!!

Being a ground breaking moment for the racing industrys, KTM’s 250cc and 300cc 2-stroke enduro bikes feature an all-new engine management system with revolutionary TPI fuel injection — the world‘s first serial electronic fuel injection system for 2-stroke offroad racers.

The TPI technology — transfer port injection — has been developed by KTM in close co-operation with EFI specialist Synerject. Turning the 2-stroke world upside down, it makes engine operation not only remarkably cleaner, but also provides a more consistent performance.

While engine power remains at the same level, the power delivery is much more homogeneous. Compensating automatically for air pressure and temperature, there is no need to set the TPI bike up for the elevation and weather of the race location. Premix fuel with 2-stroke oil is also a thing of the past, and the fuel efficiency increases dramatically.

Riding advantages:

  • Reduced fuel consumption.
  • Automatic elevation compensation, no re-jetting required.
  • Enhanced rideability and performance.
  • Reduced emissions.
  • Smooth engine behaviour.
  • Reduced fuel evaporation, which also means less fuel smell in transport vehicles.
  • Enhanced comfort and convenience: easy starting, no pre-mixed fuel.
  • No flooding when flipping over the bike.

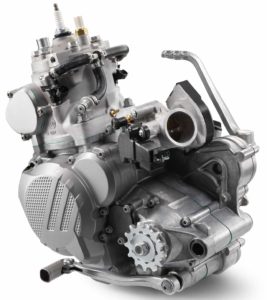

A look at EXC 2 stroke engines

While KTM introduced their new EXC generation in 2017, they go one step further in 2018 with the introduction of fuel injected technology in their 250 EXC and 300 EXC two strokes.

Set to be a game changer, the TPI models are the world’s first 2-stroke, offroad competition bikes with serial, electronic fuel injection.

“TPI” stands for “transfer port injection”, and the groundbreaking new two-stroke represents another major step forward on a global scale.

KTM say the benefits to owners are huge improvements in fuel efficiency and clean exhaust emissions, while the electronics do away with the need for re-jetting, no matter the elevation of the race venue and prevailing weather conditions.

Also, engine lubrication on the TPI models is automatic from a separate oil tank and electronically controlled oil pump, negating the use of the traditional two-stroke pre-mixed fuel-oil mixture.

In addition, the TPI bikes benefit from the complete set of KTM Enduro racing features such as an E-starter powered by super-lightweight lithium ion batteries, Brembo brakes, self-adjusting hydraulic clutches, KTM ‘No Dirt’ footpegs and gear shift levers, KTM tool-less air filter boxes, quick- release fuel lines, polished hubs, WP Xplor 48 split forks, WP Xplor PDS shock absorbers and of course typical KTM precision-welded chromoly frames.

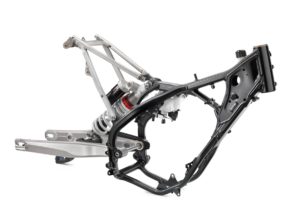

chrome-molybdenum steel tubing  frame with WP Mono rear shock

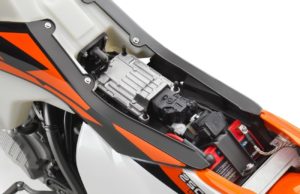

In order to accommodate the power requirements of the upgraded engine management system, the TPI models are fitted with a more powerful generator, rated at 196W, just like on the EXC-F 4-stroke models, as well as the EXC-F voltage regulator.



For optimal mass centralisation, the lightweight, die-cast crankcases hold the clutch shaft and the crankshaft in a high position close to the centre of gravity supporting the handling of the bike.

In addition, this design allows the implementation of a lateral balancer shaft to minimise vibrations, enhancing comfort and reducing rider fatigue during long and demanding enduro events and rallies.



The KTM EXC TPI models use the KTM-developed DDS clutch (damped diaphragm steel) with a highly resilient steel basket and extremely heat resistant clutch plates, a design distinguished by a considerably easier clutch operation than with conventional coil springs.

The diaphragm spring also leaves sufficient space for a damping system integrated into the clutch hub, which benefits both traction and durability.

The hydraulic Brembo clutch mechanism is synonymous with a light action and highly controlled clutch modulation.


The 6-speed transmission features widely spaced gear ratios optimised for enduro. The KTM ‘No Dirt’ gear shift lever design prevents residue from blocking the joint of the gear shift lever for safe and reliable shifting in any conditions.



The EXC TPI models are equipped with E-starters located in a well-protected position on the undersides of the engines. A powerful but lightweight lithium ion battery provides convenient and reliable starting.


The rear subframe made of lightweight aluminium sections is connected to the frame with four bolts and weighs 900g.



The frames of all KTM offroad models are manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of various cross sections. This type of frame design provides high torsional rigidity for best handling and rideability, while a certain longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

At the same time, the frame triangle serves to deliver the coolant from the cylinder head directly to the radiators.

In the TPI models, the modified frame design also serves to route engine oil from an added filler cap assembly, located between the fuel tank and the steering head, via a hose inside the upper frame tube to the oil tank.


Along with the new injection system, the TPI models receive a new, 9L tank with an integrated fuel pump system like the 4-stroke bikes and an additional fuel level sensor. All KTM EXC models feature lightweight, translucent polyethylene fuel tanks that make it easy to gauge the fuel level from the outside.



The air filter box design offers maximum protection of the air filter against soiling while ensuring maximum air flow. It uses a large Twin Air filter element mounted on a rigid cage which at the same time forms the air filter box bracket. The straightforward design also minimises the risk of installing the air filter or cage incorrectly.

In addition, the new TPI 2-stroke models are fitted with a new velocity stack to match the throttle body while at the same time accommodating an intake air temperature sensor.



The European stage 4 emission standards for motorcycles have been in effect since January 1, 2016, using the World Motorcycle Test Cycle (WMTC) and once again establishing stricter limits for motorcycle exhaust emissions.

Thanks to the highly efficient combustion control of the TPI system and precise automatic engine lubrication, the new KTM EXC models will be Euro-4-compliant, not the least due to their significant reduction of hydrocarbon emissions.
